C, Crypto & Clojure

@lvh

Slides

https://lvh.io/CCryptoClojure

Introduction

C, Crypto & Clojure

(with ✨)

Why Clojure?

I 💖 Clojure
Easier R&D

Why crypto?

That's what I do
Don't reimplement your own crypto
PCLMULQDQ, AES-NI, &c

Why C?

More about OS ABI ("native code") than C
Converse: "why only use the JVM/Clojure?"
Performance, but not only about performance
Crypto, OS features, native GUI, GPU…

Let's call native code!

(on the JVM, for now)

JNI

Code → JNI call

⟿

JNI impl -> lib

JNI

public class NativeStuff {
    public static native long getpid();
    //            ^^^^^^
    public static void main(String[] args) {
        getpid();
    }
    static {
        System.load("/some/dir/nativestuff.dylib");
    }
}

`javah`

/* DO NOT EDIT THIS FILE - it is machine generated */
#include <jni.h>
/* Header for class io_lvh_cljn_NativeStuff */
#ifndef _Included_io_lvh_cljn_NativeStuff
#define _Included_io_lvh_cljn_NativeStuff
#ifdef __cplusplus
extern "C" {
#endif
  /*
   * Class:     io_lvh_cljn_NativeStuff
   * Method:    getpid
   * Signature: ()J
   */
  JNIEXPORT jlong JNICALL Java_io_lvh_cljn_NativeStuff_getpid
      (JNIEnv *, jclass);
#ifdef __cplusplus
}
#endif
#endif

JNI implementation

#include "lvh_io_cljn_NativeStuff.h"
jlong JNICALL Java_lvh_io_cljn_NativeStuff_getpid
(JNIEnv *env, jclass c) {
  return getpid();
}

Toolchain

ᛠᛰᛜᛍᛥ ᚥᚮ‽

Clojure + JNI in the wild

neanderthal → opencl → jocl

static native boolean initNativeLibrary(String fullName);

JNI

Great, if someone else does the compily bit

JNA

import com.sun.jna.Library;
import com.sun.jna.Native;
public class NativeStuff {
    public interface GetPid extends Library {
        long getpid();
    }
    public static void main(String[] args) {
        GetPid getpid = (GetPid) Native
            .loadLibrary(GetPid.class);
        getpid.getpid();
    }
}

JNA

Performance isn't great
Some missing features

JNR

Code → JNR stub → JNI call

⟿

JNI impl -> libffi -> lib

Worst of both worlds?!

JNI platform-specific part is shared
Probably ships with support for your platform
JNR-specific part is generated

Best of both worlds

JNA UX + JNI perf

`jnr-ffi`

public interface LibC {
    public int gettimeofday(
        @Out @Transient Timeval tv,
        Pointer unused
    );
}

struct

public static final class Timeval extends Struct {
    public final time_t tv_sec = new time_t();
    public final SignedLong tv_usec = new SignedLong();
}

Thanks JRuby!

fs, subprocesses, stat, tty/pty/fcntl, fast IO

Off-the-shelf

jnr-posix, jnr-enxio, jnr-unixsocket, …

Tooling

jnr-constants, jnr-x86asm, …

Let's go write some code!

(probably Java I guess?)

`caesium` :: `libsodium`

Cryptographic library
NaCl with cheese

How much Java?

$ wc -l **h
...
9166 total

😰

Well, OK, but it's easy Java, right?

Mostly char *

So many JVM types

Pointer, Buffer, String, [B, ByteBuffer…

Return type?

Fn for each one, or by input type?
encrypt-to-buf, encrypt-to-array, …
What if you call me with 4 different types?

Functional vs mutate in place

void f(*int out, int x)
int f(int x)

Getting the right types

Conversions? (Copying!)
Reflection? (Slow, buggy!)
Explicit dispatch? (Large methods!)
Give specific type? (Hard to use!)

Combinatorial explosion

Thousands of exposed syms

Pick a type

Pointer: 🚫
String: 🚫 (except constants)
[B, ByteBuf fer: ?

[B advantages

By far most common type
Easy to use, e.g. serializers

ByteBuffer advantages

Supported API for "direct" allocation
Cheap slicing, "views" over memory

Asymmetry

byte array → indirect ByteBuffer: fast!

indirect ByteBuffer → byte array: fast?

direct ByteBuffer ↔ byte array: slow!

Conclusion

Expose everything
In-place API:
- Takes buffers only
Functional:
- Takes anything, wraps to buf
- Returns a byte array

Performance

Cliff's notes

Penalty is small
Options to make it tiny
JVM tooling is cool

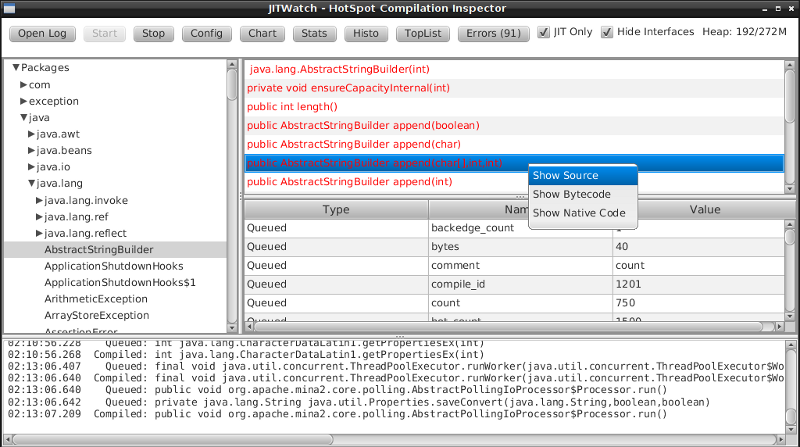

JITWatch

Getting ASM dumps

-XX:+UnlockDiagnosticVMOptions

-XX:+PrintAssembly

Getting ASM dumps

Java HotSpot(TM) 64-Bit Server VM
warning: PrintAssembly is enabled;
  turning on DebugNonSafepoints to gain additional output
... yada yada yada ...

Getting ASM dumps

Java HotSpot(TM) 64-Bit Server VM
warning: PrintAssembly is enabled;
  turning on DebugNonSafepoints to gain additional output
Could not load hsdis-amd64.dylib;
  library not loadable; PrintAssembly is disabled

Acquire hsdis

Check out OpenJDK
Build a binutils
Extensive cursing

hsdis

0x00007fb8a181a2e0: mov    DWORD PTR [rsp-0x14000],eax
0x00007fb8a181a2e7: push   rbp
0x00007fb8a181a2e8: sub    rsp,0x30
;*aload_0
; - clojure.lang.ASeq::size@0 (line 188)
0x00007fb8a181a2ec: nop
0x00007fb8a181a2ed: movabs rax,0xffffffffffffffff
0x00007fb8a181a2f7: call   0x00007fb8a1045f60
; OopMap{off=60}
;*invokevirtual count
; - clojure.lang.ASeq::size@1 (line 188)
;   {virtual_call}
0x00007fb8a181a2fc: add    rsp,0x30
0x00007fb8a181a300: pop    rbp
0x00007fb8a181a301: test   DWORD PTR [rip+0x18527df9],eax

JNR tricks

Mostly @Annotations

`@IgnoreError`

JVM (OpenJDK) uses errno
So does some C code
Gotta save and restore

`@In` and `@Out`

Value gets copied to & from
@In: only copy to native
@Out: only copy from native

`@Pinned`

Don't copy the value at all
Tell JVM not to move it
Pass the pointer straight to C

`@Direct` and `@Transient`

Native backing memory

Opt-in

How Clojure helped

`caesium`

Look Ma, no Java!

Host interop

Doesn't hide Java/JVM

`definterface`

(definterface LibC
  (^int gettimeofday
   [^Timeval ^{Out {} Transient {}} tv
    ^Pointer unused]))

The Clojure way

Have some data
Don't mess it up

Some data

(def ^:private raw-bound-fns
  '[[^int sodium_init []]
    [^String sodium_version_string []]
    [^long ^{size_t {}} crypto_secretbox_macbytes []]
    [^String crypto_secretbox_primitive []]
    [^int crypto_secretbox_easy
     [^bytes ^{Pinned {}} c
      ^bytes ^{Pinned {}} m
      ^long ^{LongLong {}} mlen
      ^bytes ^{Pinned {}} n
      ^bytes ^{Pinned {}} k]]]
  ;; ...
  )

Expose every byte type

(mapcat permuted-byte-types raw-bound-fns)

Specify once with bytes
Get ByteBuffer permutations for free

`@IgnoreError`

Just map a function over some values

`defconsts`

;; in caesium.crypto.secretbox
(defconsts [keybytes noncebytes macbytes primitive])
;; =>
(do
  (def keybytes
    "Constant returned by `crypto_secretbox_keybytes`.
    See libsodium docs."
    (.crypto_secretbox_keybytes caesium.binding/sodium))
  ;;...
  )

✨

;; in caesium.crypto.box
(✨ open-easy m c n pk sk)
;; =>
(.crypto_box_open_easy
 m c (long (buflen c))
 n pk sk)

✨

(defmacro ✨
  "Produces a form for calling named fn with lots of
  magic:

  * The fn-name is specified using its short name,
    which is resolved against the ns as per [[defconsts]].
  * All bufs are annotated as ByteBuffers.
  * Buffer lengths are automatically added.

  The emoji name of this macro accurately reflects how
  easy I want it to be for third parties to call it."
  ;; ...
  )

This stuff matters

Repetition leads to mistakes
API consistency through laziness

Conclusion

Clojure 💖 native libs

You might not need them
Don't despair if you do

Yay open sores

JNR is great!
At least one bug in jnr & Clojure
Zero-copy for cffi, PyCA/cryptography

Future work

CLJS (native library on V8, vs emscripten in the browser?)
Ship native binaries with caesium
Bind all of libsodium

Nonce-misuse resistant cryptography

Encrypting with nonces

Number used once

What if I don't?

Probably decrypt those ctexts
Arbitrary forgeries afterwards

API

E(k, n, p) -> c

Is this the default API we want?

GCM has other problems

(not gonna talk about them now)

Confusing!

GCM was the good ciphersuite, right?!

TLS alternatives are worse

GCM is fine in 1 specific case

Short-lived keys
Coordination about nonces

… so just use TLS!

Distributed systems

Encrypting a cookie or DB entry

Programmers don't grok IVs/nonces

Evidence in how often they…

mess them up
end up with ECB

OK, so randomize the nonce!

Nope!

GCM: 96 bits
Salsa20: 64 bits

People still mess it up

Nonce reuse in TLS
Bad random during encryption

Fernet

Right API! E(k, p) -> c
Safe! (IND-CCA2, EtM)
Weird choices
Encryption-time random

Goals

Fernet, modern crypto done right

Goals

Easy API
Only safe choices
Easy to implement
Easy security proof
Wide security margin
Fast enough (~10% penalty)

Busted RNG & reused nonce

total catastrophe

(decrypt, forge)

⬇

attacker can detect duplicates

(not decrypt, not forge)

Idea: synthesize nonce from plaintext

(maybe mix with randomness)

Started as research about "keywrap"

Deterministic encryption

`magicnonce`

secretbox-rnd
secretbox-det
secretbox-nmr

Rough idea

BLAKE2b as a PRF → nonce XSalsa20 + Poly1305 (big nonce space)

Perf!

Pretty good (but wait for the paper)

What about CAESAR?

Serves any masters!
Only 1 NMR suite in round 3: AEZ
Perf always worse, but how much?
Not worth it for TLS-like protocols

What about GCM-SIV?

Thanks!

Conj organizers
Wayne Meissner, Charles Nutter (JNR)
Paul Kehrer, PyCA

Q&A

@lvh

[email protected]

https://latacora.com

{lvh,youagain}@latacora.com
